Tech Specs

  • 12-Channel mixer featuring high-headroom, low-noise design
  • 4 Boutique-Quality Onyx Microphone Preamps:
    • Wide 60 dB gain range
    • 128.5 dB dynamic range
    • +22 dBu line input handling
    • Extended frequency response
    • Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • 12 High-headroom line inputs with +4 / -10 operation control
  • 3-Band EQ (80 Hz, 2.5 and 12 kHz)
  • 18 dB/octave 75 Hz low-cut filter on microphone input channels
  • AUX send, level, pan and PFL solo on each channel
  • Two stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Built-like-a-tank rugged steel chassis with powder-coat finish

perfection
OF COMPACT ANALOG MIXER DESIGN

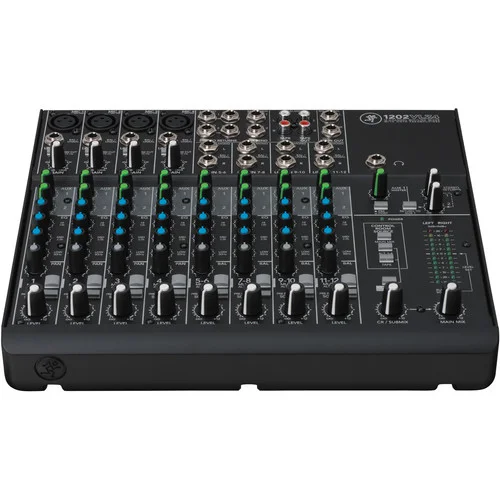

The Mackie 1202VLZ4 12-Channel Compact Mixer features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like a dedicated control room section, it offers a step up in flexibility and performance that is suitable for your professional applications.
