Tech Specs

  • 16-Channel mixer featuring high-headroom, low-noise design
  • 10 Boutique-Quality Onyx Microphone Preamps:
    • Wide 60 dB gain range
    • 128.5 dB dynamic range
    • +22 dBu line input handling
    • Extended frequency response
    • Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • 16 High-headroom line inputs with +4 / -10 operation control
  • 3-Band EQ (80 Hz, 2.5 and 12 kHz)
  • 18 dB/octave 75 Hz low-cut filter on microphone input channels
  • Four AUX sends, level, pan and PFL solo on each channel
  • Four stereo returns for connecting FX processor or other stereo source
  • 60mm long-wearing log-taper faders
  • ALT 3/4 stereo bus for added routing flexibility
  • Built-like-a-tank rugged steel chassis with powder-coat finish

perfection
OF COMPACT ANALOG MIXER DESIGN

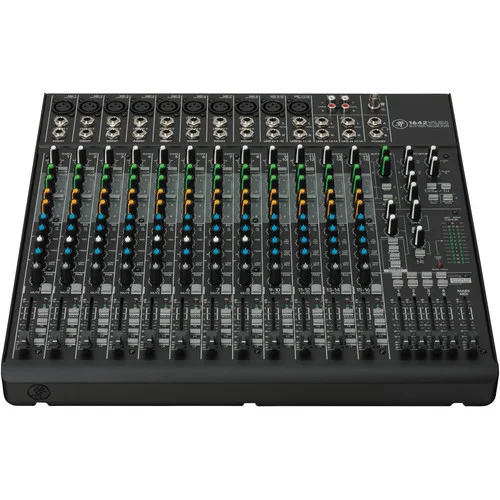

The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.
