Tech Specs

  • 8-Channel mixer featuring high-headroom, low-noise design
  • 3 Boutique-Quality Onyx Microphone Preamps:
    • Wide 60 dB gain range
    • 128.5 dB dynamic range
    • +22 dBu line input handling
    • Extended frequency response
    • Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • 8 High-headroom line inputs with +4 / -10 operation control
  • 3-Band EQ (80 Hz, 2.5 and 12 kHz)
  • 18 dB/octave 75 Hz low-cut filter on microphone input channels
  • AUX send, level, pan and PFL solo on each channel
  • Two stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Built-like-a-tank rugged steel chassis with powder-coat finish

perfection
OF COMPACT ANALOG MIXER DESIGN

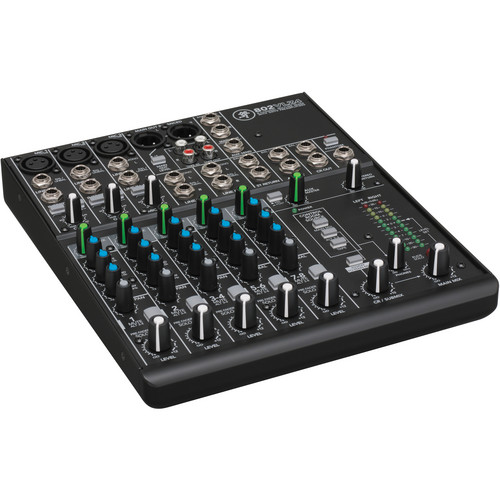

The Mackie 802VLZ4 8-Channel Ultra-Compact Mixer features Onyx microphone preamps in a desk-friendly, ultra-compact design, suitable for professional applications with a lower input need. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like instrument level inputs, phantom power, and level metering, the 802VLZ4 offers a true step-up performance and durability that is suitable for your professional applications.
