Tech Specs

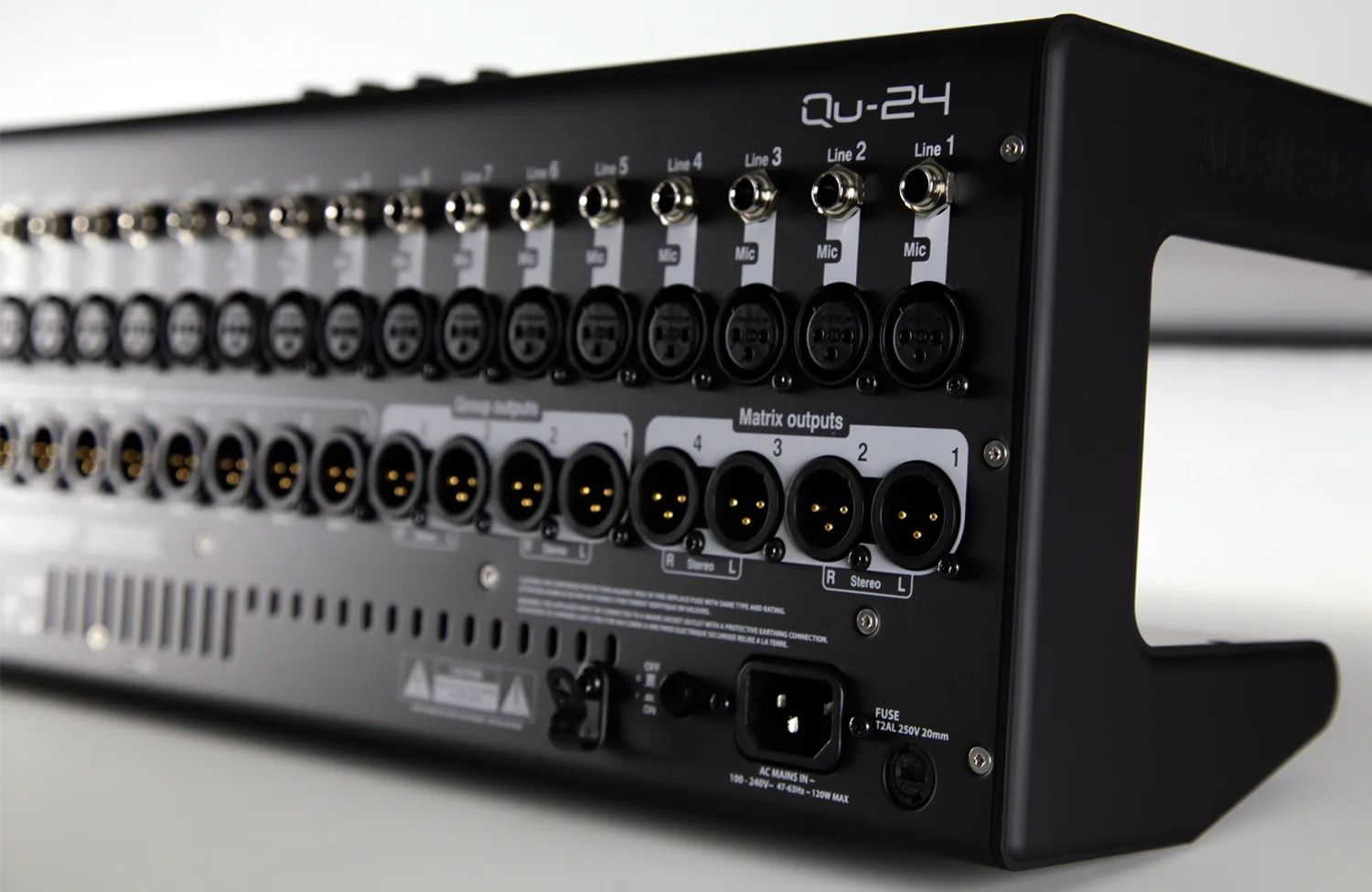

  • 24 Mic / Line Inputs (TRS + XLR)
  • 25 Motor Faders
  • 3 Stereo Inputs (TRS)
  • 4 Stereo FX Returns
  • 20 Mix Outputs (XLR)
  • 2 Stereo Groups (switchable to Mix mode)
  • Up to 9 Monitor Mixes (4 mono + 5 stereo)
  • 2 Stereo Matrix Outs
  • 4 Mute Groups
  • 4 FX Engines
  • 4 FX Sends / Returns
  • 10 Soft Keys
  • USB Audio Streaming
  • DAW MIDI Control
  • AES Digital Out
  • Recallable AnaLOGIQTM Preamps


DIGITAL MIXING RESHAPED

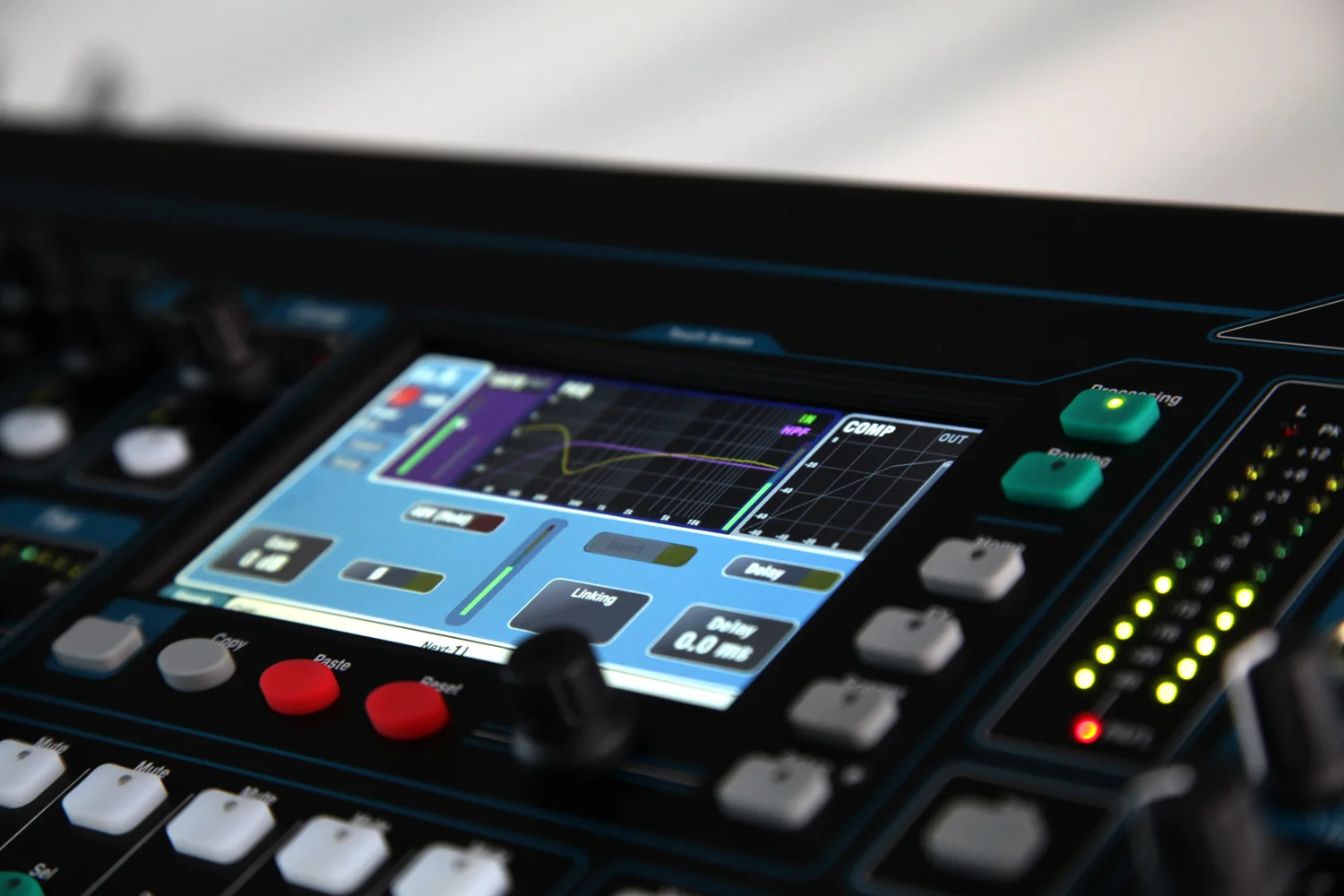

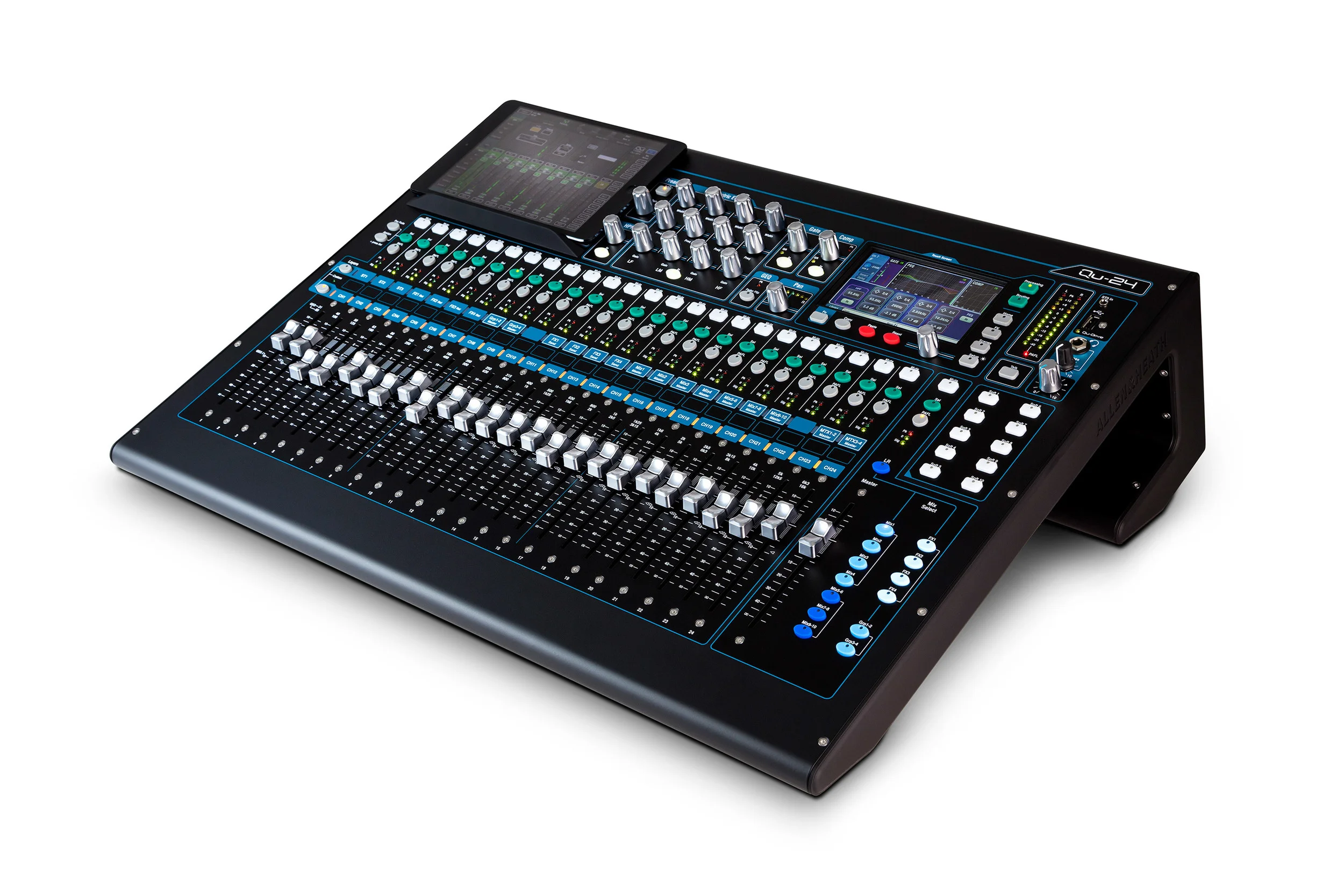

With its responsive touchscreen, 25 motor faders and acclaimed AnalogiQ recallable preamps,
Qu-24 combines exceptional ease of use with class-leading audio performance.

Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems,
Qu makes Allen & Heath digital mixing more accessible and more compact than ever.


Downloads

QU Mixer User Guide

Qu-24 Firmware V1.90


  • Qu-Drive direct Multitrack Recording / Playback on USB drives
  • 800×480 Touchscreen
  • iLive FX Library
  • dSNAKETM Remote Audio Port
  • Automatic Mic Mixer*
  • Compatible with ME Personal Mixing System
  • Qu-Pad iPad App
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid with feedback elimination and taming room acoustics
  • High contrast metallic finish controls, matching premium GLD Chrome series
