Specs

  • 280 watt High-Performance Powered Speaker System
  • Ultra Light Weight and Extremely Compact

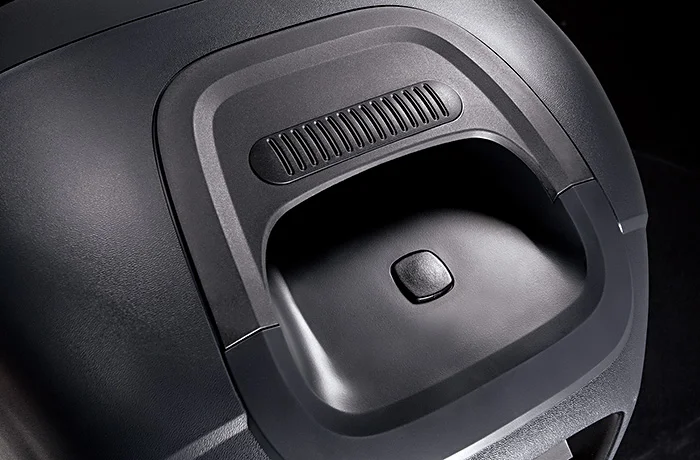

  • Soft touch top grip for easy handling.
  • 10" Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology

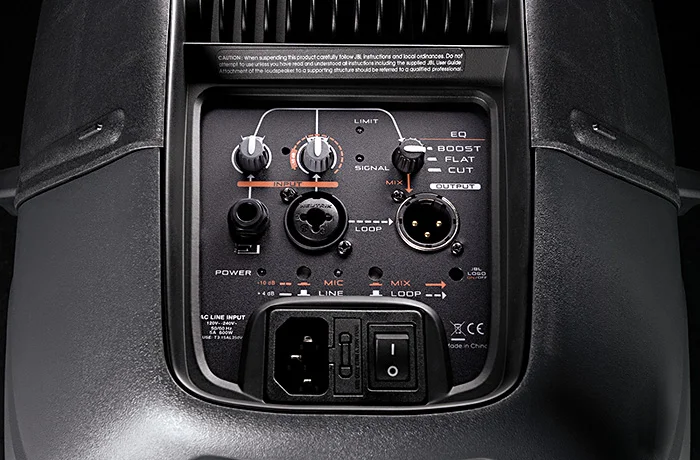

  • Built-in 3 Channel Mixer
  • 100° H x 60° V asymmetrical waveguide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Unique Mix/Loop signal flow function for extended system application
  • Easy “daisy-chain” connections for extending the system
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight, and acoustic performance

Portable Self-Powered 10", Two-Way, Bass-Reflex Design

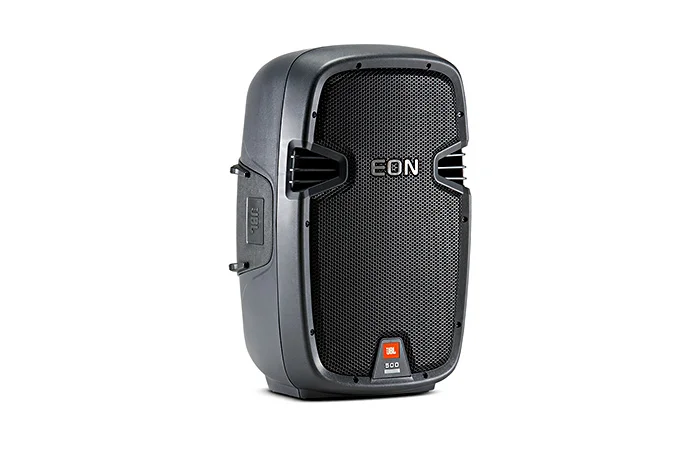

The EON510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON510 is comprised of a 254 mm (10 in) Differential Drive® woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and mixer functionality.
