Specs & Key Features

  • Panasonic Lens with optical image stabilizer, motorized / manual mode switching, 22x zoom, f1.6 -3.2 (f=3.9mm to 86mm / 35mm equivlaent: 28mm to 616mm, 16:9)
  • 1920 x 1080 Effective Pixels
  • 1/3 type progressive, 3MOS, 2.2 million pixels
  • ND filter: OFF, 1/4, 1/16, 1/64
  • Color Temp: ATW, ATW LOCK, preset 3200K, preset 5600K, preset VAR, Ach, Bch
  • Dual SD Card Recording
  • Recording Formats:
    • AVCHD:
      SD memory card: 512MB, 1GB, 2GB (FAT12, FAT16)
    • SDHC memory card: 4GB, 6GB, 8GB, 12GB, 16GB, 32GB (FAT32)
    • SDXC memory card: 48GB, 64GB, up to 2TB (exFAT)
    • *PH/HA mode requires Class4 or faster Card / VFR recording requires Class6 or faster
  • SDI / HDMI video outputs
  • 3.45" LCD color monitor
  • weight 5.3lbs

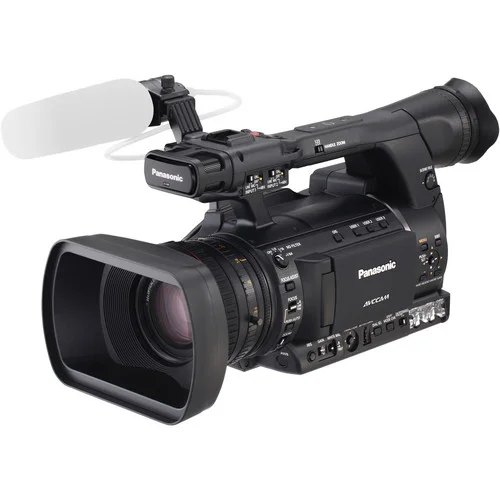

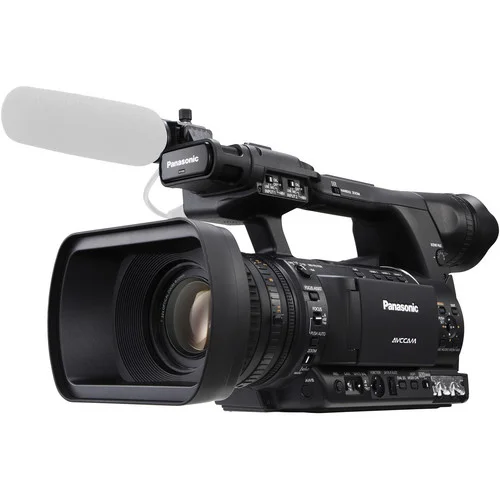

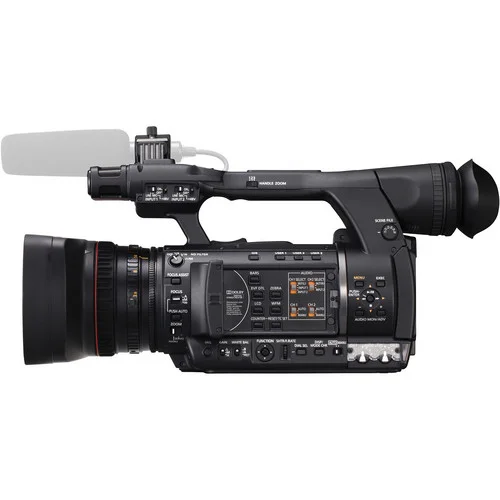

The Panasonic AG-AC160A AVCCAM HD Handheld Camcorder is an upgraded version of the AG-AC160. The upgrade consists of the addition of 1080/60p and 50p recording (max. 28Mbps in PS mode), expanded focus assist functionality, and a "turbo speed" one-push auto focus function. 60p/50p capture capacity gives you excellent control over slow-motion. Shooting in 60p, you can play back 24p for a 2.5x slow-motion effect. With expanded focus assist you can zoom in on an image to check focus. And one-push auto focus affords the option of very quickly attaining focus in circumstances requiring on-the-go focusing.


As for other features, the AG-AC160A is a high-definition workhorse of a professional handheld camcorder that integrates seamlessly with a wide range of current broadcast video systems in place around the world. With an integrated 22x zoom lens and a 1/3-type 3MOS three-element imager, the camera captures AVCHD video to two SD/SDHC/SDXC card slots as 1080p60, 1080p30, 1080i60, filmic 1080p24, and 720p60.
